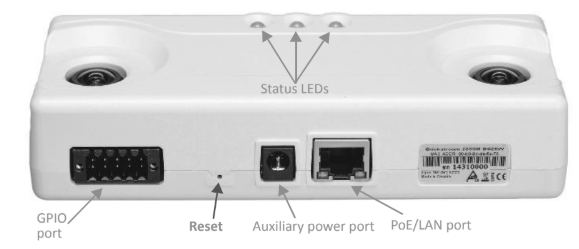

1. Insert a paper clip into the reset button on the Brickstream 3D Sensor and depress the button

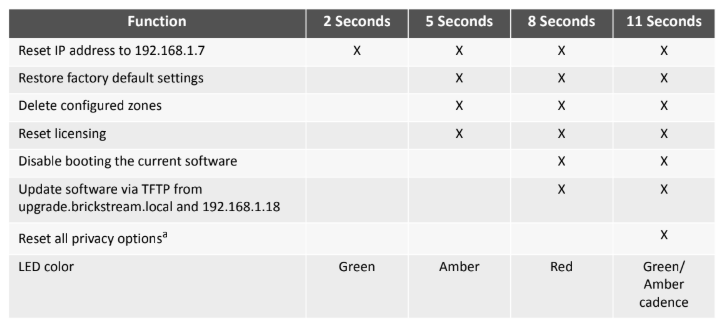

until the desired color illuminates on LED 3, then release the button. Use the following chart to
determine how long to hold in the reset button.
Notes: LED 3 shows a sequence of colors depending on how long you depress the Reset button. For example if you want to disable booting of the current interface by depressing the button for 8 seconds, during this time LED 3 turns green, then amber, and finally red.
2. The desired LED color illuminates and stays lit for 10 seconds, during which time you must
press and release the Reset button again to confirm the action. After confirming the action,
the sensor executes the action and reboots the sensor.
Notes: If the firmware is corrupted and your sensor constantly reboots, unplug the sensor, press and hold
the reset button while plug the sensor in, then complete the reset steps.
