How to configure Brickstream for both walkby and enter/exit counting?

Modified on Thu, 19 Dec, 2019 at 8:24 PM

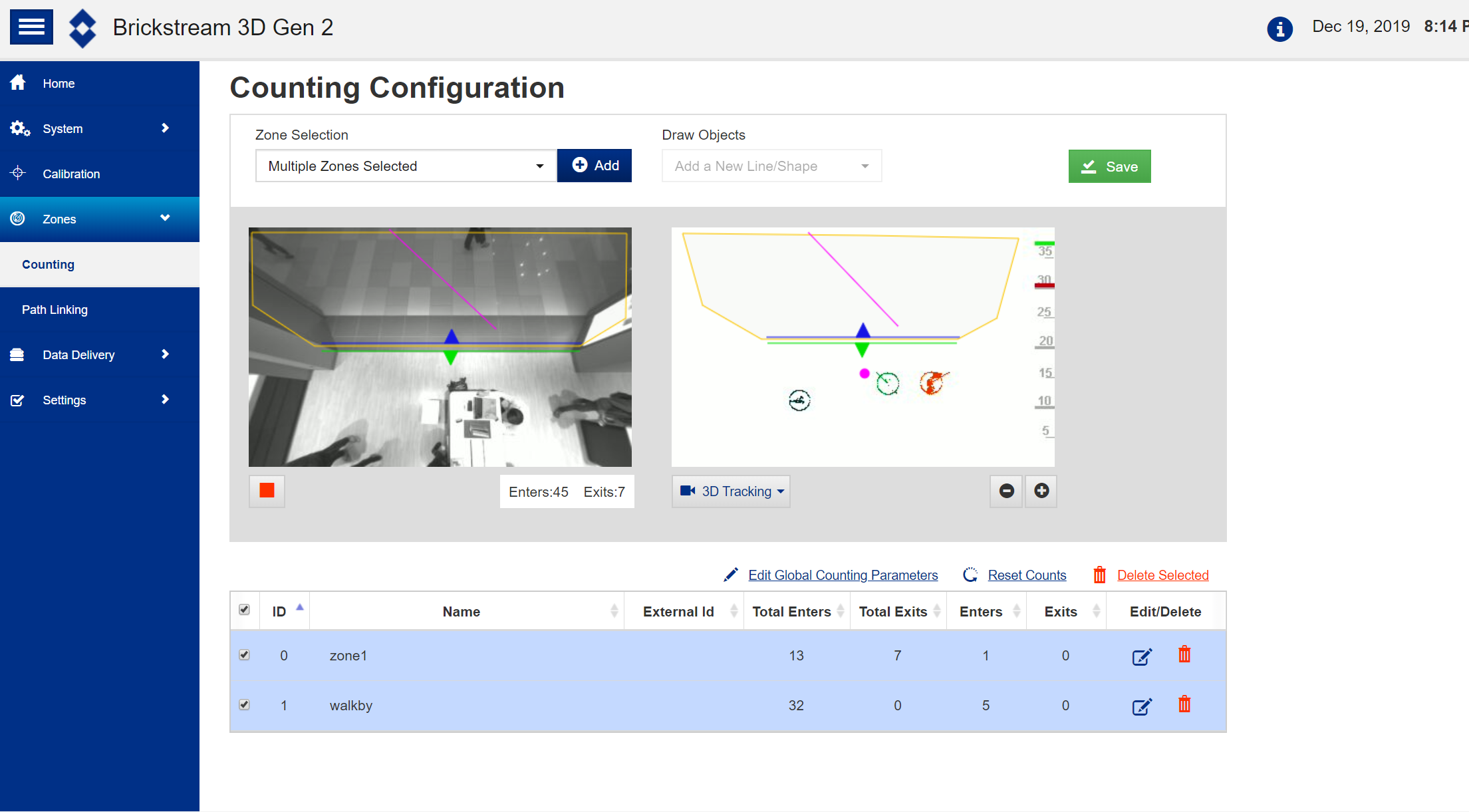

First of all, go to Zones -> Counting:

Add 2 different zones, one for Counting and another for Walkby. Name the walkby zone as walkby

Draw the pass line for walkby as a slanted line instead of straight line

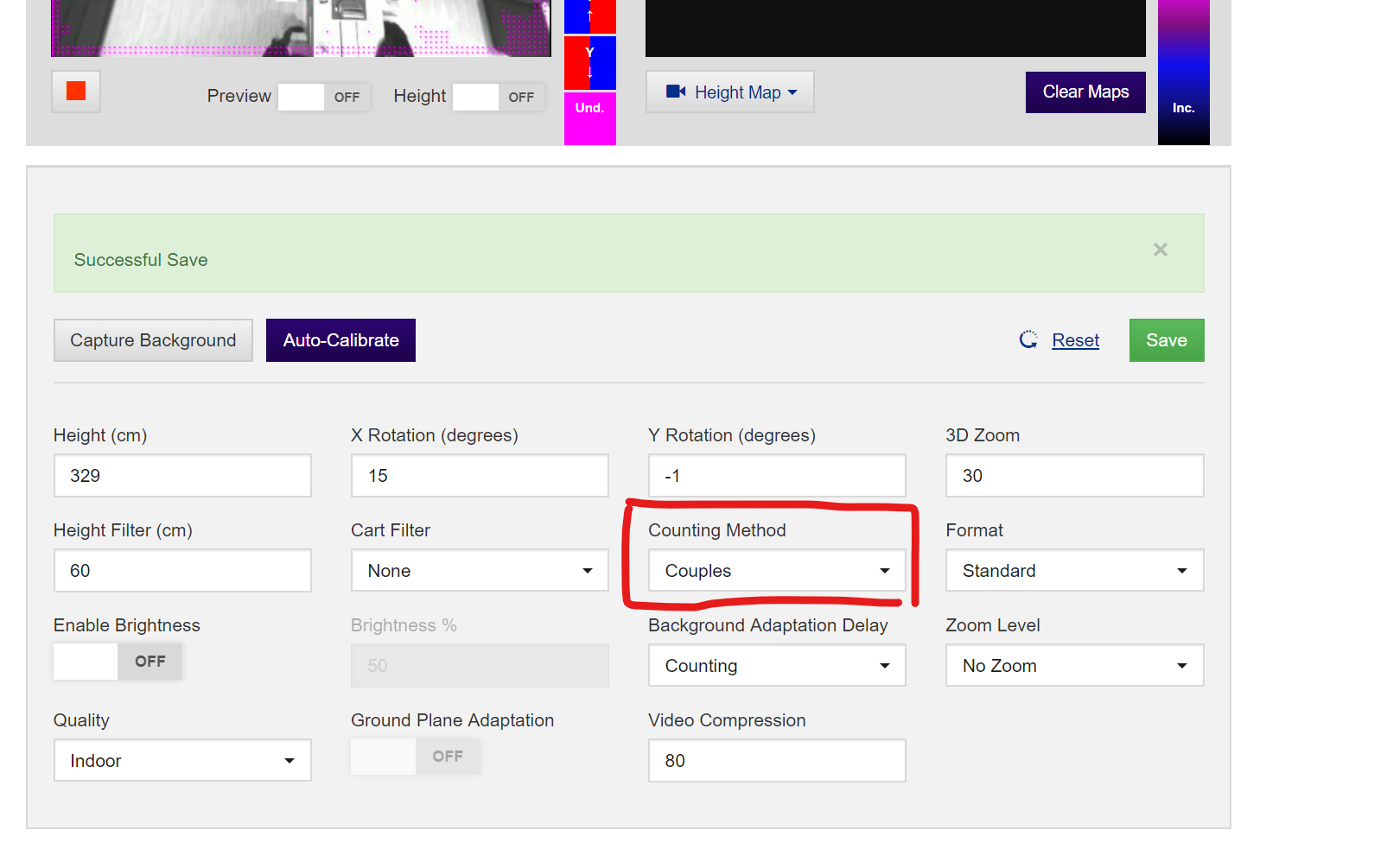

Go to Calibration and enable Couples Counting

Go to Settings -> Tracking and make the following changes:

Basic -> Height Filter - 60

Segmentation -> Min Height - 50

Tracking -> Min Height to track - 60

Tracking -> Min Object Mass - 150
